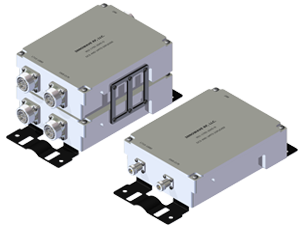

1800MHz DCS Band and 2100MHz UMTS Band Diplexer / Combiner

PART #:

901-1795-2045
FEATURES

  • Splits or combines the DCS Band (1710MHz-1880MHz) and UMTS Band (1920MHz-2170MHz)
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low PIM with High Power Handling
  • RoHS Complaint
  • Ease of Mounting with mounting holes and brackets
  • Weatherproof / Outdoor options available
  • In Stock to low lead time delivery

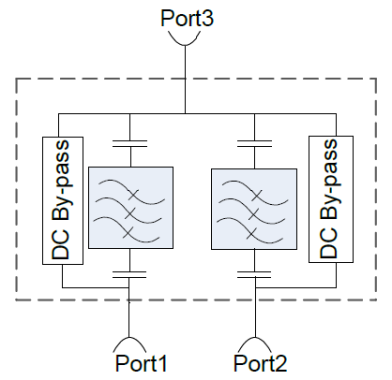

Electrical Specification

Frequency Bands1800MHz DCS Band 1710 MHz - 1880 MHz 2100MHz UMTS Band 1920 MHz - 2170 MHz
Passband Insertion Loss0.20 dB0.20 dB
Isolation≥70 dB @ 1920MHz-2170MHz≥70 dB @ 1710MHz-1880MHz
Return Loss21 dB21 dB
Impedance50 Ohms50 Ohms
DC Pass Current4000mA (Typ) (Not available for Type-N Connectors)4000mA (Typ) (Not available for Type-N Connectors)
Lightning Protection8/20S 10kA Pulse (IEC 801-5) (Not available for Type-N Connectors)8/20S 10kA Pulse (IEC 801-5) (Not available for Type-N Connectors)
Input Power400 Watts (Avg); 2500 Watts (Peak)400 Watts (Avg); 2500 Watts (Peak)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range: -35°C to 75°C
Relative Humidity: 5% - 95%
Environment: IP67

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
