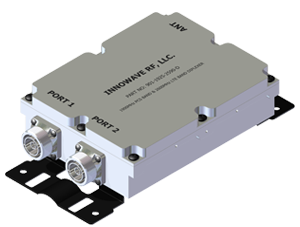

1900MHz PCS Band & 2600MHz LTE Band Diplexer / Combiner

PART #:

901-1925-2590
FEATURES

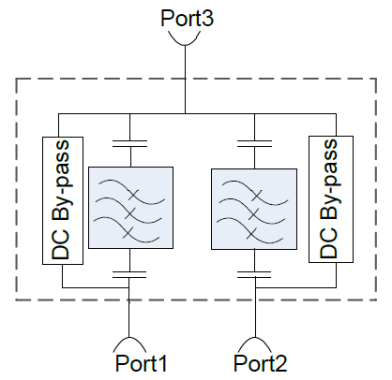

  • Splits or combines the 1900MHz PCS Band (1850MHz–2000MHz) and 2600MHz LTE Band (2496MHz–2690MHz)
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

Electrical Specification

Frequency Bands1900MHz PCS Band 1850MHz-2000MHz 2600MHz LTE Band 2496MHz-2690MHz
Passband Insertion Loss0.20 dB0.20 dB
Isolation≥70dB @ 2496MHz-2690MHz≥70dB @ 1850MHz-2000MHz
Return Loss21 dB21 dB
Impedance50 Ohms50 Ohms
Input Power400 Watts (Avg); 2000 Watts (Peak)400 Watts (Avg); 2000 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors:7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range: -35°C to 75°C
Relative Humidity:5% - 95%
Environment: IP67

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
