700 LTE / 850 CDMA, GSM / 1900MHz PCS / AWS-1, AWS-3 Quadplexer / Multi-Band Combiner

PART #:

941-800-1930
FEATURES

  • Splits or combines the 700MHz LTE Band (698MHz-787MHz), 850MHz CDMA, GSM Bands (806MHz-896MHz), PCS (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands700LTECDMA-850/850-GSM1900MHz PCSAWS-1/AWS-3
698MHz - 787MHz806MHz - 896MHz1850MHz - 2000MHz1695MHz - 1780MHz 2110MHz - 2180MHz
Passband Insertion Loss0.25 dB0.25 dB0.25 dB0.25 dB
Isolation≥ 65 dB≥ 65 dB≥ 65 dB≥ 65 dB
Return Loss21 dB21 dB21 dB21 dB
Impedance50 Ohms50 Ohms50 Ohms50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

Connectors:Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Temperature Range:-20°C to 60°C
Humidity: 5% – 95%
Environment:IP67

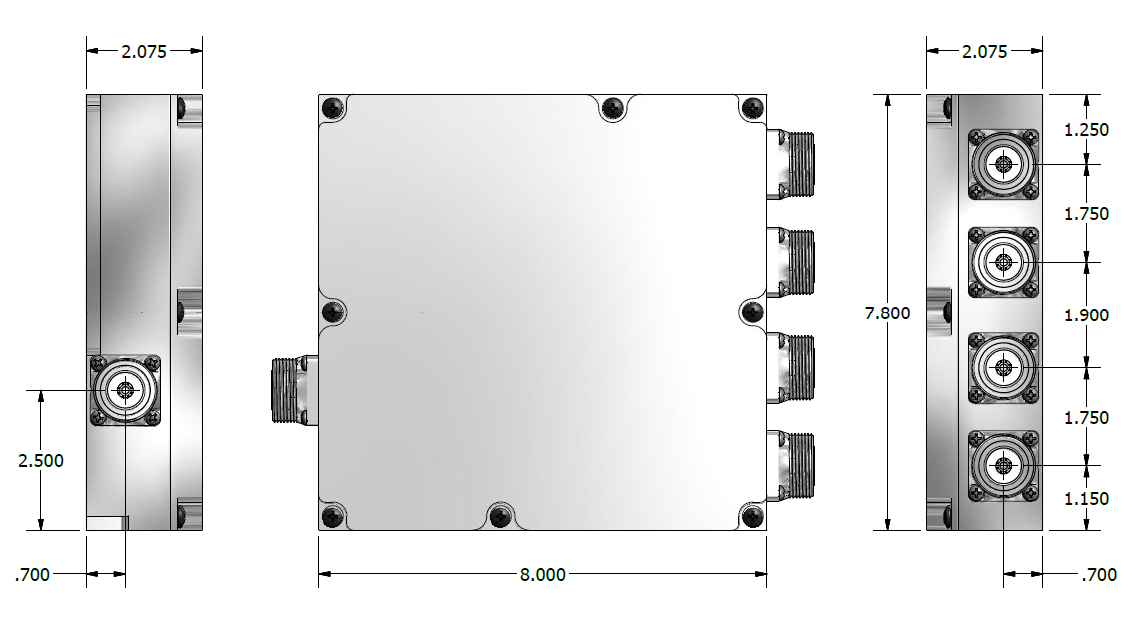

Dimensions for 941-800-1930-D

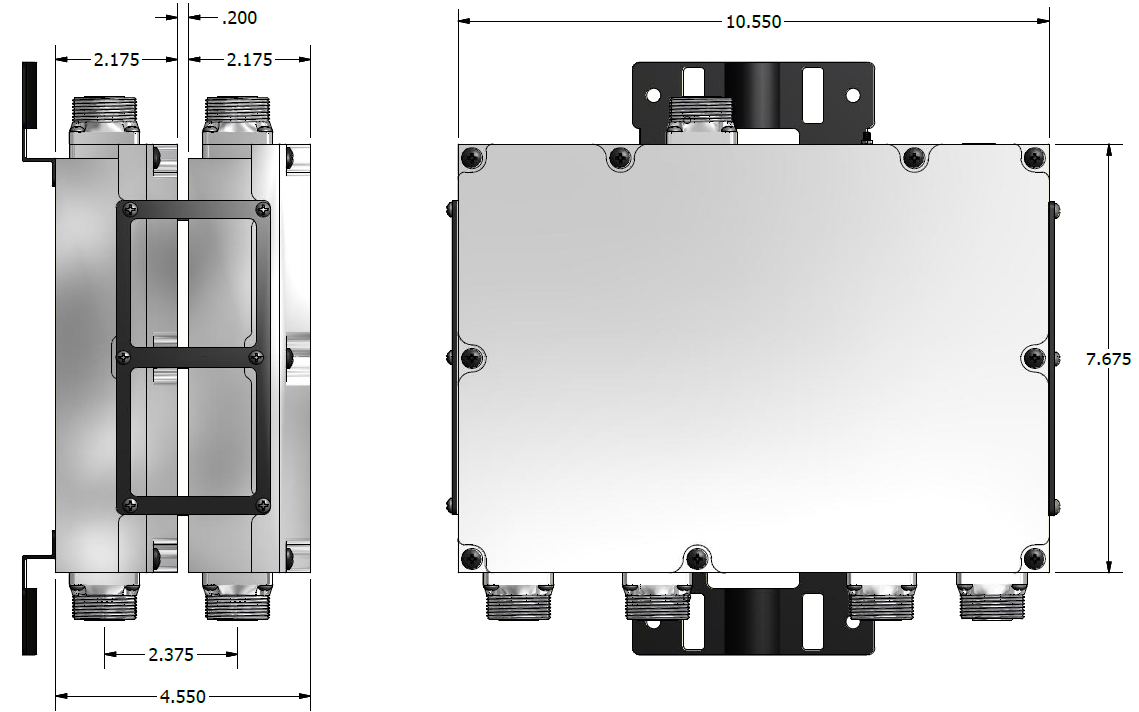

Dimension for 942-800-1930-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
