PART #: 901C-742-852
700 LTE and 850-GSM/CDMA Diplexer / Combiner
FEATURES
- Splits or combines the 700LTE Band and 850-GSM /850-CDMA Band
- Compact Design with Single/Stacked/Twin/Quad combiner model available for tight space applications
- Best-in-class Isolation between the 2 signals
- Very low Insertion Loss with superior out of band rejections
- Low-PIM with High Power Handling
- Available in 7/16 DIN, Mini-DIN, 4.3-10 and Nex10 Connectors
- RoHS Complaint, Weatherproof / Outdoor unit
BLOCK DIAGRAM FOR 901C-742-852
Electrical Specification
| Frequency Bands | 700 LTE 698 MHz - 787 MHz | 850 GSM / CDMA 815 MHz - 896 MHz |
| Passband Insertion Loss | 0.20dB | |
| Isolation | ≥40dB @ 815MHz-896MHz | ≥40dB @ 698MHz-787MHz |
| Return Loss | 21dB | |
| Impedance | 50 Ohms | |
| Input Power | 100 Watts (Avg); 250 Watts (Peak) | |
| DC Pass Current | 4000 mA (Typ) | |
| Lightning Protection | 8/20S 10kA Pulse (IEC 801-5) | |
| Intermodulation (PIM - 3rd) | -161 dBc (2 Tones +43 dBm) | |

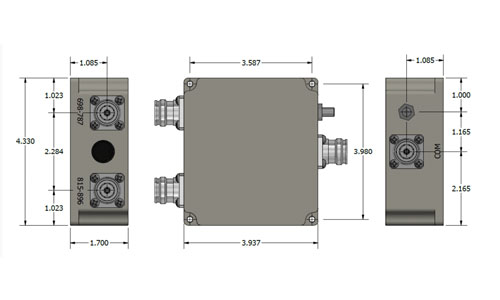

Mechanical Specification
| Connectors: | 7/16 DIN (D) / Mini-DIN (MD) 4.3-10 (D43) / NEX-10 (X10) |
| Mounting Method: | Mounting Panel |
| Temperature Range: | -20°C to 70°C |
| Weight: | 2.00 lbs |
| Relative Humidity: | 5% - 95% |
| Environment: | IP67 |
*** ORDERING INFO:
Stacked Model: Part#: 901C-742-852-*
* – Connector Option
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
