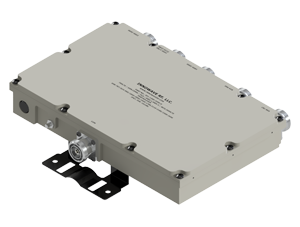

700LTE / GSM, CDMA / 1900MHz PCS / AWS-1, AWS-3 / WCS, 2600LTE Pentaplexer / Multi-Band Combiner

PART #:

951-1300-2490
FEATURES

  • Splits or combines 700LTE Band (698MHz-787MHz), GSM, CDMA Bands (824MHz-960MHz), PCS Band (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and WCS, 2600LTE Bands (2300MHz-2690MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands700 LTEGSM, CDMAPCSAWS-1, AWS-3WCS, 2600 LTE
698 - 787 MHz824 - 960 MHz1850 - 2000 MHz1695 - 1780 MHz 2110 - 2180 MHz 2300 - 2690 MHz
Passband Insertion Loss0.35 dB0.35 dB0.35 dB0.35 dB0.35 dB
Isolation≥ 60 dB≥ 60 dB≥ 60 dB≥ 60 dB≥ 60 dB
Return Loss21 dB21 dB21 dB21 dB21 dB
Impedance50 Ohms50 Ohms50 Ohms50 Ohms50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method: Mounting Panel
Temperature Range: -35°C to 75°C
Relative Humidity:5% - 95%
Environment: IP67

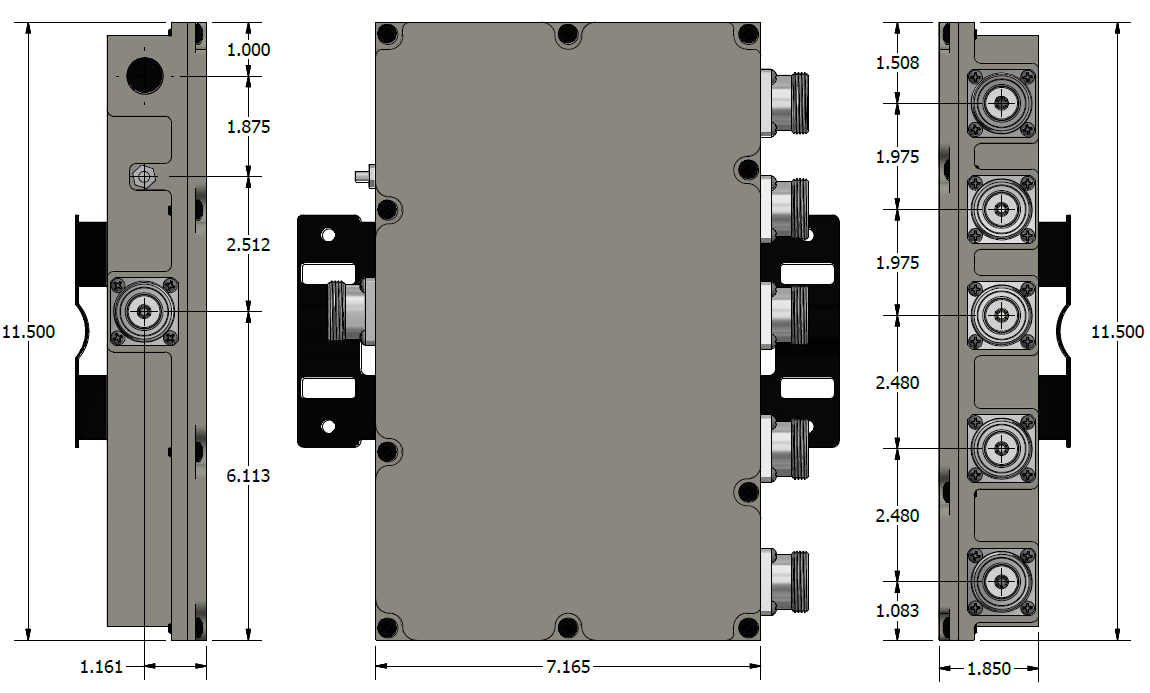

Dimensions for 951-1300-2490-D

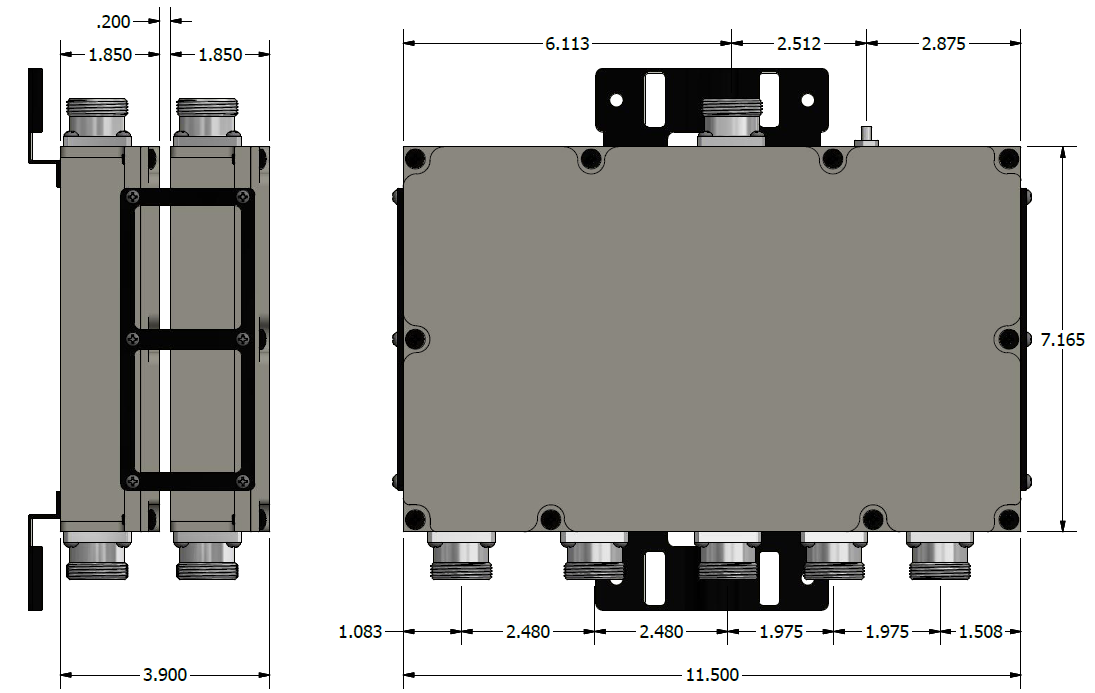

Dimensions for 952-1300-2490-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
