941-1300-2490 / 942-1300-2490

700LTE, GSM, CDMA / 1900MHz PCS / AWS-1, AWS-3 / WCS, 2600LTE Quadplexer / Multi-Band Combiner

FEATURES

  • Splits or combines 700LTE, GSM, CDMA Bands (698MHz-960MHz), PCS Band (1850MHz2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and WCS, 2600LTE Bands (2300MHz-2690MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

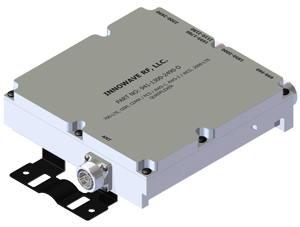

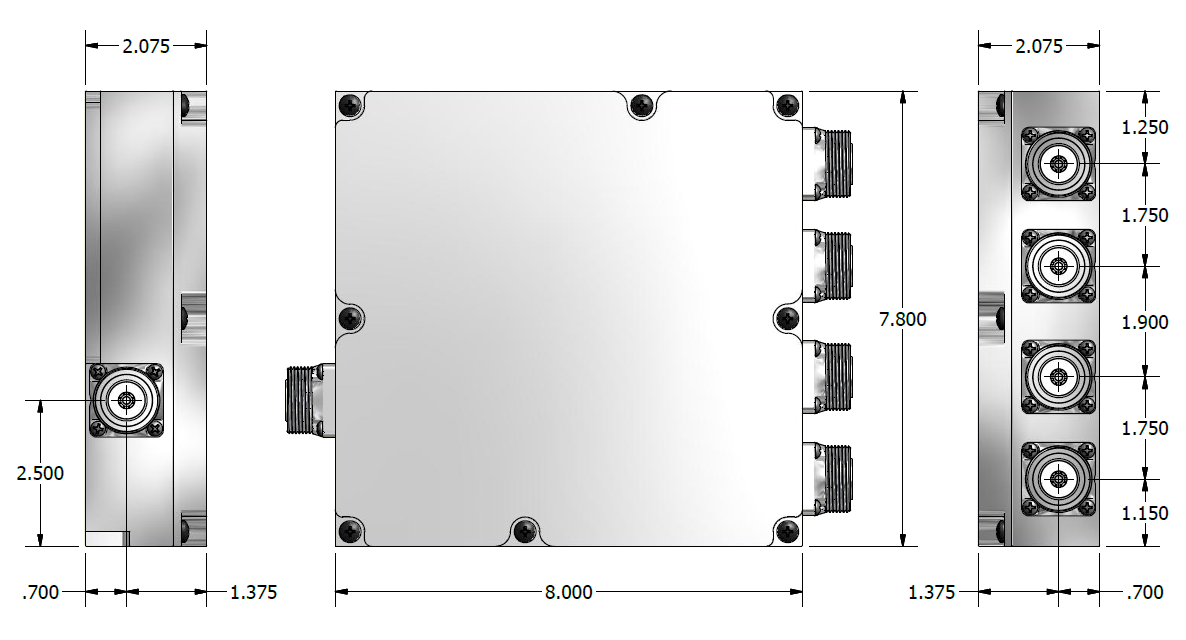

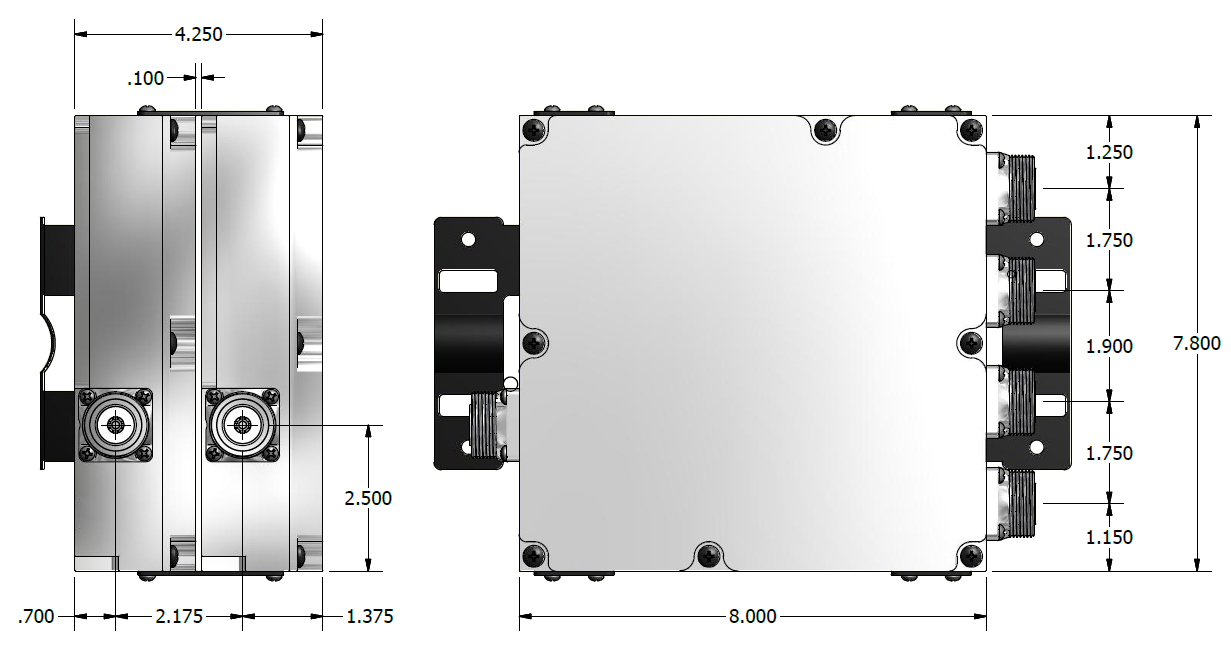

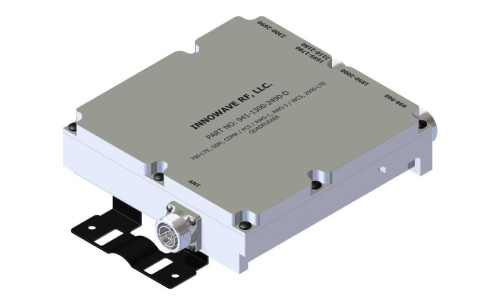

942-1300-2490-1

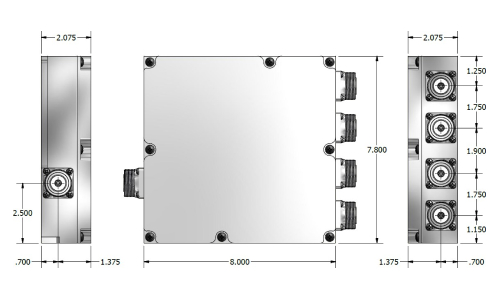

942-1300-2490-2

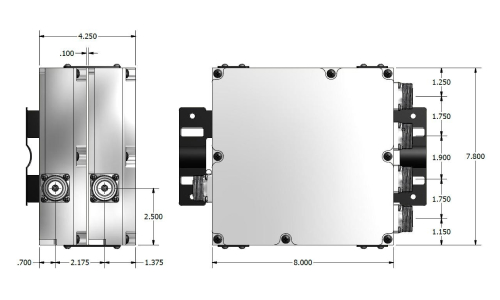

942-1300-2490-3

Electrical Specification

Frequency Bands700 LTE, GSM, CDMA
698MHz - 960MHz		PCS
1850MHz - 2000MHz		AWS-1, AWS-3
1695MHz - 1780MHz
2110MHz - 2180MHz		WCS, 2600 LTE
2300MHz - 2690MHz
Passband Insertion Loss0.25 dB
Isolation≥ 65 dB
Return Loss21 dB
Impedance50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors:7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-35°C to 75°C
Relative Humidity:5% - 95%
Environment:IP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
