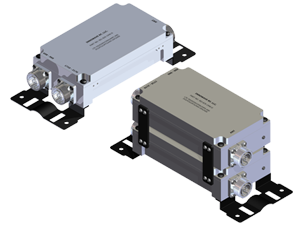

700LTE/GSM/CDMA and DCS/PCS/UMTS/AWS-1/AWS-3 Diplexer / Combiner

PART #:

901-829-1940
FEATURES

  • Splits or combines the 700MHz LTE/GSM/CDMA/AMPS Bands and DCS/PCS/UMTS/AWS-1/AWS-3 Bands
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Ease of Mounting with mounting holes
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

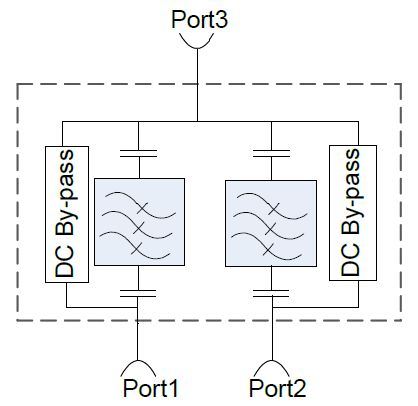

Electrical Specification

Frequency Bands700-LTE/GSM/CDMA/AMPS 698 MHz - 960 MHz DCS/PCS/UMTS/AWS-1/AWS-3 1695 MHz - 2180 MHz
Passband Insertion Loss0.20 dB0.20 dB
Isolation≥70 dB @ 1695MHz-2180MHz≥70 dB @ 698MHz-960MHz
Return Loss21 dB21 dB
Impedance50 Ohms50 Ohms
Input Power400 Watts (Avg); 2500 Watts (Peak)400 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Temperature Range: -20°C to 80°C
Humidity: 5% – 95%
Environment: IP67
