PART #: 901C-1925-2390 / 902C-1925-2390
903C-1925-2390 / 904C-1925-2390

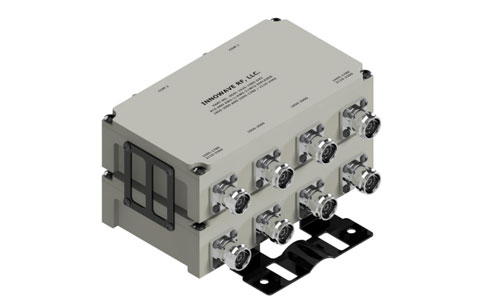

PCS and AWS-1/AWS-3/WCS/BRS Diplexer / Combiner – Compact Design

FEATURES

  • Splits or combines the AWS-1 / AWS-3 / WCS / BRS Bands (1695MHz–1780MHz & 2110MHz-2690MHz) and PCS Band (1850MHz–2000MHz)
  • Compact Design with Single/Stacked/Twin/Quad combiner model for tight space applications
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • Available in 7/16 DIN, Mini-DIN and 4.3-10 Connectors
  • RoHS Complaint, Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

Electrical Specification

Frequency BandsAWS-1/AWS-3/WCS/BRS Bands
1695MHz-1780MHz & 2110MHz-2690MHz		PCS Band
1850MHz-2000MHz
Passband Insertion Loss0.20dB
Isolation≥40dB
@ 1850MHz-2000MHz		≥40dB
@ 1695MHz-1780MHz & 2110MHz-2690MHz
Return Loss21dB
Impedance50 Ohms
Input Power100 Watts (Avg); 250 Watts (Peak)
DC Pass Current4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)

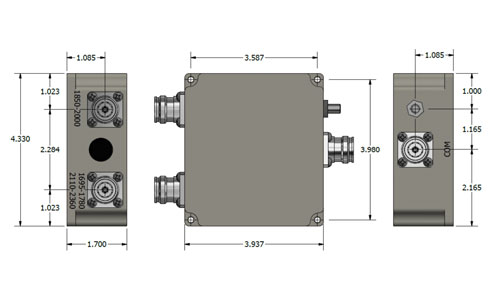

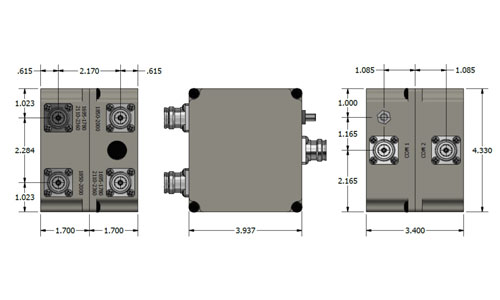

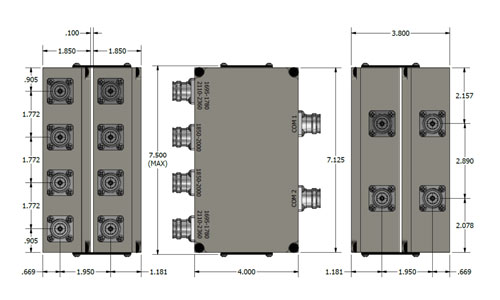

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / Type-N (N)
Mounting Method:Mounting Panel
Temperature Range:-20°C to 70°C
Weight: 3.30 lbs (902C); 7.00 lbs (904C)
Relative Humidity:5% - 95%
Environment: IP67

*** ORDERING INFO:

      Single Model:       Part#: 901C-1925-2390-*

      Stacked Model:     Part#: 902C-1925-2390-*

      Twin Model:          Part#: 903C-1925-2390-*

      Quad Model:         Part#: 904C-1925-2390-*

* – Connector Option

BLOCK DIAGRAM FOR 901C-1925-2390
BLOCK DIAGRAM FOR 903C-1925-2390

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
