PCS and AWS-1/AWS-3/WCS Diplexer / Combiner – Compact Design

PART #:

901C-1925-1985
FEATURES

  • Splits or combines the AWS-1 / AWS-3 / WCS Bands (1695MHz–1780MHz & 2110MHz-2360MHz) and PCS Band (1850MHz–2000MHz)

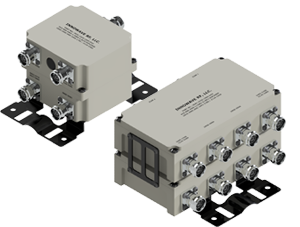

  • Compact Design with Single/Stacked/Twin/Quad combiner model for tight space applications
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • Available in 7/16 DIN, Mini-DIN and 4.3-10 Connectors
  • RoHS Complaint, Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

Electrical Specification

Frequency BandsAWS-1/AWS-3/WCS Bands 1695MHz-1780MHz & 2110MHz-2360MHz PCS Band 1850MHz-2000MHz
Passband Insertion Loss0.20dB0.20dB
Isolation≥40dB @ 1850MHz-2000MHz ≥40dB @ 1695MHz-1780MHz & 2110MHz-2360MHz
Return Loss21dB 21dB
Impedance50 Ohms50 Ohms
Input Power50 Watts (Avg); 250 Watts (Peak)50 Watts (Avg); 250 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-20°C to 70°C
Relative Humidity:5% - 95%
Environment: IP67

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
