112BX-600-6000-D43

2-Way In-Line Wideband Reactive Power Splitters

Adjustable Connector Lengths, -163dBc PIM, 600-6000 MHz, IP67, 4.3-10

112BX-600-6000 is a Low-PIM 2-Way In-Line Reactive Power Splitter with Adjustable Connector Lengths on the splitting side. This is designed to evenly split high power signals between 600MHz and 6000MHz. These splitters cover all the traditional Cellular frequencies, including the CBRS, C-Bands and LTE-LAA. This unique In-Line structure is Compact and can be used without any bulky inter-connections or undue cable stress. The connector lengths can be adjusted from 1.61” (41mm) to 1.77” (45mm). These are a perfect to be used in conjunction to Commscope e-POI system.

FEATURES

Wide bandwidth 600 MHz – 6000 MHz
CBRS, C-Band and LTE-LAA Ready
Adjustable Connector Lengths from 61” (41mm) to 1.77” (45mm)
Compact In-Line Reactive Splitter
Connects perfectly to a Commscope e-POI System
Superior and rugged construction
Low Insertion Loss and low VSWR
Low PIM, -163dBc
RoHS Complaint
Weatherproof / Outdoor unit
In Stock to low lead time delivery

Specifications

Frequency Range	600 MHz – 6000 MHz
Passband Insertion Loss	0.30 dB @ 600-2700 MHz 0.40 dB @ 2700-4200 MHz 0.55 dB @ 4200-6000 MHz (Over the theoretical loss of 3 dB)
VSWR	≤ 1.30 @ 600-2700 MHz ≤ 1.25 @ 2700-4200 MHz ≤ 1.30 @ 4200-6000 MHz
Power Handling	300 W (Avg)
Impedance	50Ω
PIM – 3rd	-163 dBc (2 Tones +43 dBm)
Temperature Range	-30°C to 75°C
Weight	1.10 lb
Connectors	IN – 4.3-10(F) OUT – 4.3-10(M) x2

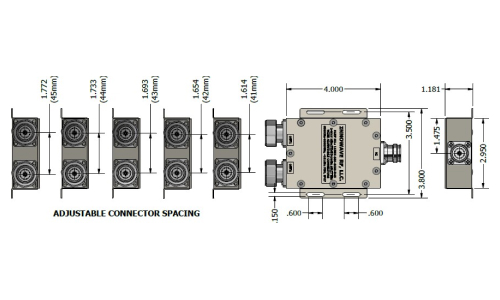

Connector Adjustment	1.61” (41mm) to 1.77” (45mm)
Housing Finish	Aluminum Body
Mounting Method	Mounting Holes
Humidity	5% - 95%
Environment	IP67
