153B-600-6000

3-Way In-Line Ultra Wideband Wilkinson Power Splitter

600-6000 MHz, -155dBc PIM, IP67

153B-600-6000 is an In-Line Ultra Wideband Low-PIM 3-Way Wilkinson Power Splitter, designed specifically for the DAS and In-Building Wireless Industry to covers CBRS, C-Band and LTE-LAA. The same unit can work both as a combiner and a divider for signals between 600MHz and 6000MHz. Mounting holes enable them to be easily mounted on structures. It also has a low Insertion Loss with a good isolation between the channels. Available in 4.3-10 or NEX10 connectors.

FEATURES

  • 3-Way In-Line Device
  • Splits or Combines signals between 600MHz – 6000MHz
  • CBRS, C-Band and LTE-LAA
  • Low Insertion Loss and low VSWR
  • PIM, -155dBc (min)
  • 80W Power Handling
  • RoHS Complaint
  • Rugged, Weatherproof / Outdoor unit
  • In Stock to low lead time delivery
  • Available in 3-10 and NEX10 Connectors standard

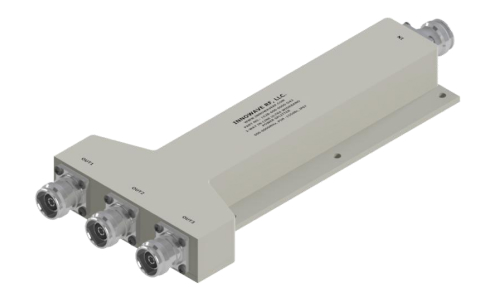

153B-600-6000-1

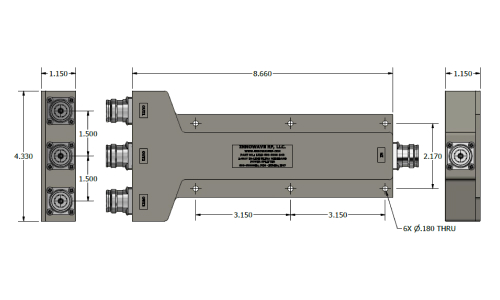

153B-600-6000-2

Mechanical Specification

Frequency Range600 MHz – 6000 MHz
Passband Insertion Loss1.10 dB
(Over the theoretical loss of 4.8 dB)
VSWR≤ 1.35
Power Handling (Splitter)80 W (Avg)
Isolation≥ 16 dB
Impedance50Ω
PIM – 3rd-155 dBc (2 Tones +43 dBm)
Temperature Range-30°C to 70°C
Weight1.50 lbs
Mounting MethodMounting Holes
Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
