2×2 3dB Ultra Wideband Hybrid Coupler
-161dBc PIM, 600-6000 MHz, IP67

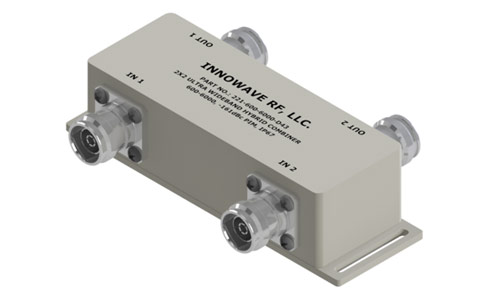

221-600-6000 is a 4-Port, 3dB Hybrid Coupler that can used to combine any 2 signals in 600MHz – 6000MHz range, including the CBRS and LTE-LAA bands. The combined signal will appear at both the output ports. These are symmetric devices so inputs and outputs can be used interchangeably. It can also be used to split one input signal into 2 output ports. The unused port must be always terminated with a 50Ω Load. These hybrid couplers can be used over a wide range of temperature and environmental conditions.
FEATURES
- Combines 2 signals in the 600MHz – 6000MHz
- Cover 600MHz (Band 71), CBRS and LTE-LAA bands
- Best-in-class Isolation between the 2 signals
- Very low Insertion Loss
- Available in DIN, Mini-DIN, 3-10 or Nex10 Connectors
- Low-PIM & High Power Handling
- Ease of Mounting with mounting holes
- Weatherproof for Outdoor use
- In Stock and Available Immediately
Electrical Specification
Frequency Range | 600MHz – 6000MHz |
Coupling Loss | 3.25 ± 1.00 dB @ 600-4200 MHz 3.50 ± 1.10 dB @ 4200-6000 MHz |
Isolation | 25.00 dB @ 600-4200 MHz 24.00 dB @ 4200-6000 MHz |
VSWR | 1.25 |
Impedance | 50 Ohms |
Input Power | 200 Watts (Avg) / port |
Intermodulation (PIM – 3rd) | -161dBc (2 Tones +43dBm) |
Mechanical Specification
Connectors | DIN (D) / Mini-DIN (MD) 4.3-10 (D43) / Nex10 (X10) |
Housing Finish | Aluminum Body |
Mounting Method | Mounting Holes |
Temperature Range | -30°C to 65°C |
Weight | 2.7 lbs |
Humidity | 5% - 95% |
Environment | IP67 |

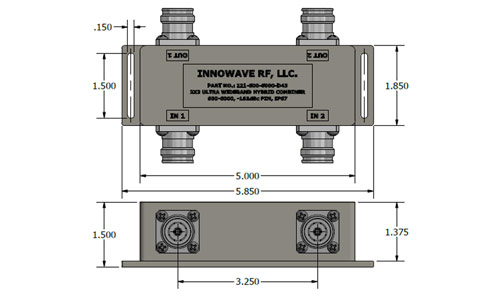

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
