303-2 Series

2W Ultra Wideband Terminations / Loads

DC-6000MHz, IP67

303-2 Series of RF Terminations can be used for a broad range of applications operating from DC to 6 GHz and is rated at 2 Watts power. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. They are perfect for both Indoor and Outdoor DAS applications.

FEATURES

  • CBRS, C-Band and LTE-LAA Ready
  • Superior Mechanical Construction
  • 2 Watts Power Handling
  • Low VSWR from DC to 6GHz
  • RoHS Compliant
  • In stock and available immediately
  • Available in 4.3-10 or NEX10 Connectors

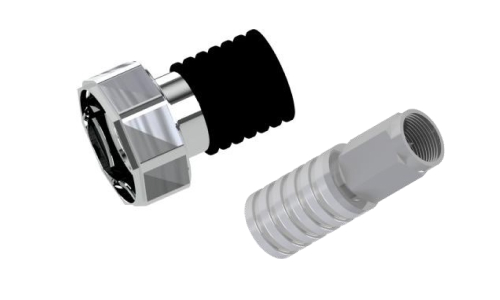

303-2

ELECTRICAL & MECHANICAL SPECIFICATIONS

Frequency RangeDC – 6 GHz
VSWR≤ 1.20 (Typ) @ DC-3 GHz
≤ 1.22 (Typ) @ 3-6 GHz
Input power2 Watts (Avg)
Impedance50 Ω
Connectors Options4.3-10 (D43)
NEX10 (X10)
Housing FinishAluminum Body
Temperature Range-35°C to 75°C
Weight0.25lbs
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
