303L-150 Series

150W Low-PIM Ultra Wideband Terminations / Loads

-161dBc PIM, 600-6000 MHz, IP67

303L-150 Series of Low-PIM Ultra Wideband RF Terminations operates from 600MHz to 6000MHz and is rated at 150 Watts of power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. These terminations are also available with Female connectors. They can be used for both Indoor and Outdoor DAS applications.

FEATURES

  • CBRS, C-Band and LTE-LAA Ready
  • Low-PIM performance, -161dBc (min)
  • Superior Mechanical Construction
  • 150 Watts Power Handling
  • Low VSWR from 600MHz to 6000MHz
  • RoHS Compliant
  • In stock and available immediately
  • Available in 3-10 or NEX10 connectors

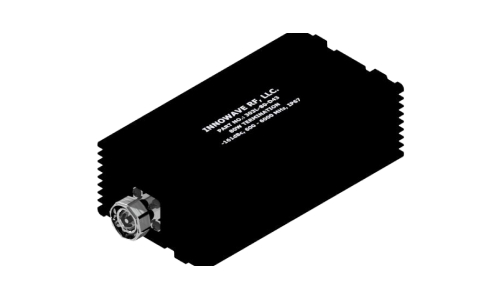

303l-150-1

ELECTRICAL & MECHANICAL SPECIFICATIONS

Frequency Range600MHz – 6000MHz
VSWR≤ 1.25 (Typ) @ 600-3300 MHz
≤ 1.20 (Typ) @ 3300-4200 MHz
≤ 1.30 (Typ) @ 4200-6000 MHz
Input power150 Watts (Avg)
Impedance50 Ω
Intermodulation (PIM - 3rd)-161 dBc (Min)
(2Tones +43dBm)
Connectors4.3-10 (D43)
NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Hole
Weight4.00 lbs
Temperature Range-35°C to 75°C
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
