303L-200 Series

200W Ultra Low-PIM Wideband Terminations / Loads

-168dBc PIM (min), 600-6000 MHz, IP67

303L-200 Series of Ultra Low-PIM Wideband RF Terminations operates from 600MHz to 6000MHz and is rated at 200 Watts of power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. These ultra Low PIM terminations are perfect to test for unwanted PIM generated at Radio Heads. The terminations come with 4.3-10 Female connectors standard. They can be used for both Indoor and Outdoor applications.

FEATURES

  • CBRS, C-Band and LTE-LAA Ready
  • Ultra Low-PIM performance, -168dBc (min)
  • Superior Mechanical Construction
  • 200 Watts Power Handling
  • Mounting Bracket for easy mounting in the field
  • Low VSWR from 600MHz to 6000MHz
  • RoHS Compliant
  • In stock and available immediately
  • Available in 4.3-10 (F) standard

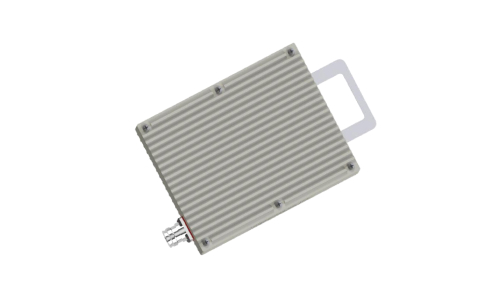

303l-200-1

ELECTRICAL & MECHANICAL SPECIFICATIONS

Frequency Range600MHz – 6000MHz
VSWR≤ 1.25 (Typ) @ 600-3300 MHz
≤ 1.20 (Typ) @ 3300-4200 MHz
≤ 1.25 (Typ) @ 4200-6000 MHz
Input power200 Watts (Avg)
Impedance50 Ω
Intermodulation (PIM - 3rd)-168 dBc (Min)
(2Tones +46dBm)
Connectors (Standard)4.3-10 Female (D43F)
Housing FinishAluminum Body
Mounting MethodMounting Hole
Weight5.75 lbs
Temperature Range-35°C to 75°C
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
