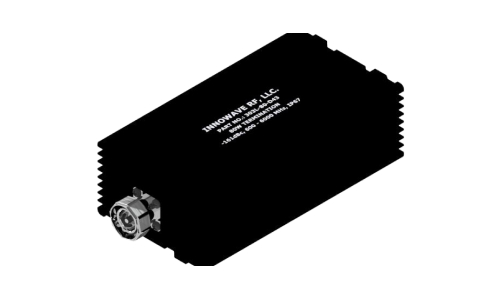

303L-80 Series
80W Low-PIM Ultra Wideband Terminations / Loads
-161dBc PIM, 600-6000 MHz, IP67
303L-80 Series of Low-PIM Ultra Wideband RF Terminations operates from 600MHz to 6000MHz and is rated at 80 Watts of power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. These terminations are also available with Female connectors. They can be used for both Indoor and Outdoor DAS applications.
FEATURES
- CBRS, C-Band and LTE-LAA Ready
- Low-PIM performance, -161dBc (min)
- Superior Mechanical Construction
- 80 Watts Power Handling
- Low VSWR from 600MHz to 6000MHz
- RoHS Compliant
- In stock and available immediately
- Available in 3-10 or NEX10 connectors
ELECTRICAL & MECHANICAL SPECIFICATIONS
Frequency Range | 600MHz – 6000MHz |
VSWR | ≤ 1.25 (Typ) @ 600-3300 MHz ≤ 1.25 (Typ) @ 3300-4200 MHz ≤ 1.30 (Typ) @ 4200-6000 MHz |
Input power | 80 Watts (Avg) |
Impedance | 50 Ω |
Intermodulation (PIM - 3rd) | -161 dBc (Min) (2Tones +43dBm) |
Connectors | 4.3-10 (D43) NEX10 (X10) |
Housing Finish | Aluminum Body |
Mounting Method | Mounting Holes |
Weight | 4.00 lbs |
Temperature Range | -35°C to 75°C |
Relative Humidity | 5% - 95% |
Environment | IP67 |
