313L-XX-30 Series

CBRS / C-Band / LTE-LAA 30 Watt Low-PIM In-Line Attenuator

-161dBc PIM, 600-6000MHz, IP67

313L-XX-30 Series of DoD / CBRS / C-Band / LTE-LAA In-Line Low-PIM Fixed Attenuators are designed for 30W applications from 600MHz – 6000MHz. These attenuators are guaranteed for Low-PIM performance in the entire frequency range. These units are rugged in their construction and can handle harsh environmental conditions. They are perfect for indoor and outdoor applications. Standard values include are listed in the specifications below. Custom attenuation values can also be manufactured on request.

FEATURES

  • DoD / CBRS / C-Band / LTE-LAA Ready
  • Fixed In-Line Attenuator with a high degree of accuracy
  • Small Form-Factor and Light Weight
  • Flat response from 600MHz – 6000MHz
  • Conventional Male(IN) / Female(OUT)
  • Outstanding PIM performance, -161dBc typical
  • Low VSWR across the band
  • RoHS Compliant
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

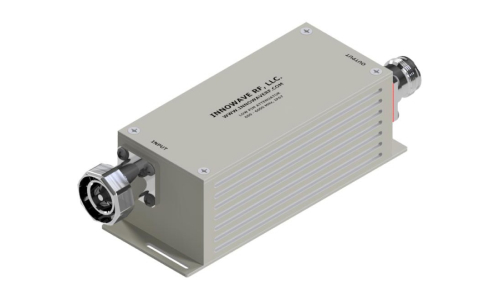

313l-xx-30-1
313l-xx-30-2
313l-xx-30-3

Electrical Specification

Attenuation2dB3dB5dB6dB10dB15dB20dB30dB40dB
Attenuation Accuracy±0.25±0.50±0.50±0.50±1.00±1.00±1.00±1.25±1.50
Frequency Range600MHz - 6000MHz
Return Loss19 dB (Typ)
Intermodulation (PIM - 3rd)-161 dBc (Typ) (2 Tones +43 dBm)
Impedance50 Ohms
Input Power30W (Average Power)

Mechanical Specifications

Connectors4.3-10(D43) / Nex-10(X10)
Housing FinishAluminum Body
Mounting MethodMounting Slot
Temperature Range-35°C to 75°C
Relative Humidity5% - 95%
Weight3.30 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
