PART #:

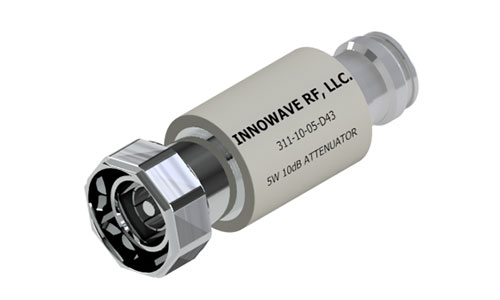

311-XX-55 Watt In-Line Attenuators
DC-3000MHZ, IP64
DESCRIPTION
311-XX-5 Series of In-Line Fixed Attenuators are designed for 5W applications from DC – 3000MHz. These attenuators are guaranteed for stable performance in the entire frequency range. These units are rugged in their construction and can handle day-to-day wear and tear in indoor applications. Standard values include are listed in the specifications below. Custom attenuation values can also be manufactured on request.
FEATURES
- Fixed In-Line Attenuator with a high degree of accuracy
- Small Form-Factor and Light Weight
- Flat response from DC – 3000MHz
- Conventional Male(IN) / Female(OUT)
- Low VSWR across the band
- RoHS Complaint
- Indoor unit
- Outdoor units available on request
- In Stock to low lead time delivery
Electrical Specification
| Attenuation | 3dB | 4dB | 5dB | 6dB | 7dB | 8dB | 9dB | 10dB | 11dB | 12dB | 13dB |
| Attenuation Accuracy | ±0.30 | ±0.30 | ±0.50 | ±0.50 | ±0.50 | ±0.60 | ±0.60 | ±0.75 | ±0.75 | ±0.75 | ±0.80 |
| Frequency Range | DC - 3000MHz | ||||||||||
| Return Loss | 20 dB (Typ) | ||||||||||
| Impedance | 50 Ohms | ||||||||||
| Input Power | 5W (Average Power) | ||||||||||

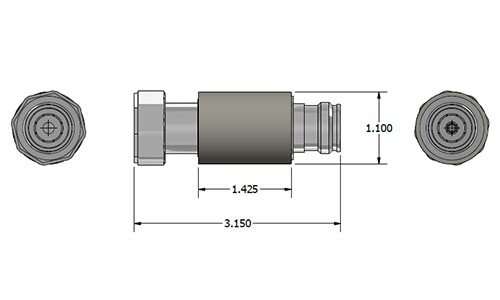

Mechanical Specification
| Connectors: | 7/16 DIN(D) / Mini-DIN(MD) / 4.3-10(D43) / Type-N(N) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Bracket |
| Temperature Range: | -30°C to 65°C |
| Weight | 0.25 lbs |
| Environment: | IP64 |
*** ORDERING INFO:
Part No.:Part #:311-XX-5-*
XX - Attenuation Value
* - Connector Option
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
