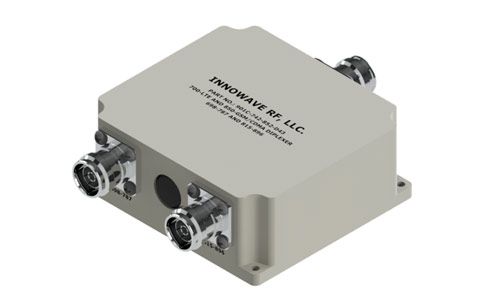

PART #: 901C-742-852

700-LTE & 850-GSM/CDMA Combiner / Diplexer

698-787 & 815-896 MHZ, -161dBc PIM, IP67
FEATURES

  • Splits or combines the 700LTE Band and 850-GSM /850-CDMA Band
  • Compact Design with Single/Stacked/Twin/Quad combiner model available for tight space applications
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • Available in 7/16 DIN, Mini-DIN, 4.3-10 and Nex10 Connectors
  • RoHS Complaint, Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

BLOCK DIAGRAM FOR 901C-742-852

Electrical Specification

Frequency Bands700 LTE
698 MHz - 787 MHz		850 GSM / CDMA
815 MHz - 896 MHz
Passband Insertion Loss0.20dB
Isolation≥40dB
@ 815MHz-896MHz		≥40dB
@ 698MHz-787MHz
Return Loss21dB
Impedance50 Ohms
Input Power100 Watts (Avg); 250 Watts (Peak)
DC Pass Current4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)

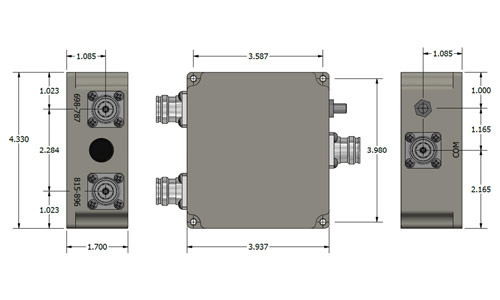

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / NEX-10 (X10)
Mounting Method:Mounting Panel
Temperature Range:-20°C to 70°C
Weight: 2.00 lbs
Relative Humidity:5% - 95%
Environment: IP67

*** ORDERING INFO:

Stacked Model: Part#: 901C-742-852-*

* – Connector Option
