PCS / AWS-1, AWS-3 / WCS, 2600LTE Triplexer / Combiner

PCS 1850MHz - 2000MHz

FEATURES

  • Splits or combines the PCS Band (1850MHz-2000MHz), AWS-1 & AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and WCS, BRS/2600MHz LTE Bands (2300MHz-2690MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

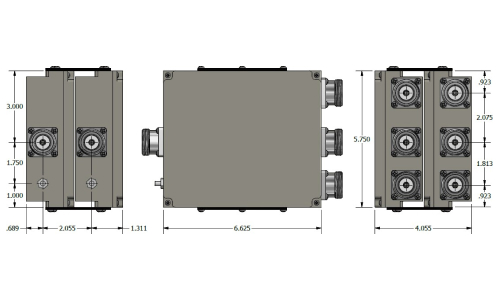

931-1800-2490-1

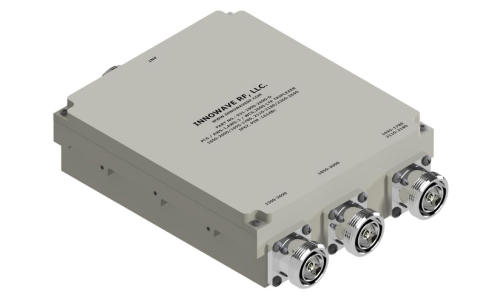

931-1800-2490-3

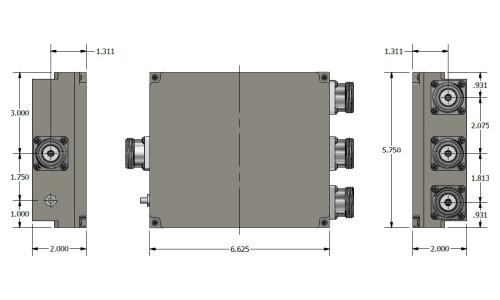

931-1800-2490-2

Electrical Specification

Frequency BandsPCS
1850MHz - 2000MHz		AWS-1 & AWS-3
1695MHz - 1780MHz
2110MHz - 2180MHz		WCS, BRS/2600MHz LTE
2300MHz - 2690MHz
Passband Insertion Loss0.25 dB
Isolation≥ 65 dB
Return Loss21 dB
Impedance50 Ohms
Input Power400 Watts (Avg); 3000 Watts (Peak)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)
DC Pass Current3000mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
MTBF Hours≥ 500,000

Mechanical Specification

ConnectorsType-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
