700MHz LTE / CDMA, GSM / PCS, AWS-1, AWS-3 Triplexer / Combiner

700 MHz LTE 698MHz - 787MHz

FEATURES

  • Splits or combines the 700MHz LTE Band (698MHz-787MHz), CDMA/GSM Band (815MHz-896MHz) and PCS/AWS-1/AWS-3 Bands (1695MHz-2180MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

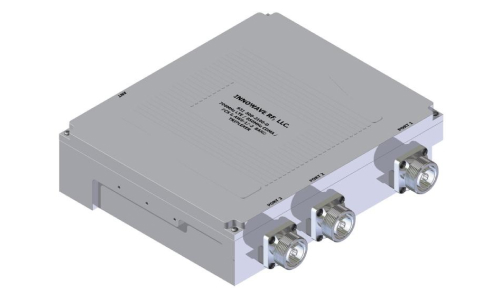

932-800-2100-1

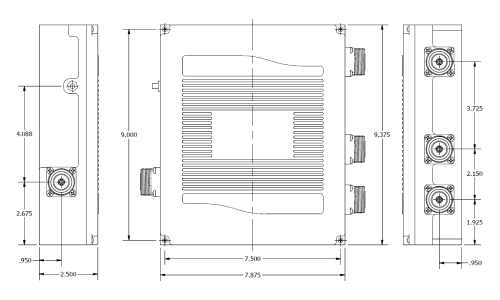

932-800-2100-2

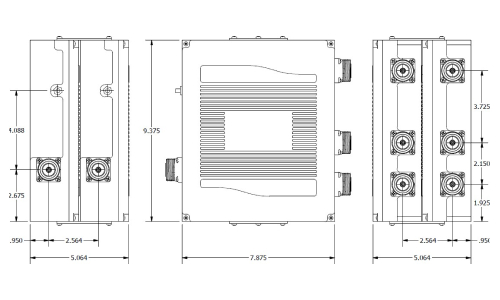

932-800-2100-3

Electrical Specification

Frequency Bands700 MHz LTE
698MHz - 787MHz		CDMA/GSM
815MHz - 896MHz		PCS/AWS-1/AWS-3
1695MHz - 2180MHz
Passband Insertion Loss0.25 dB
Isolation≥ 65 dB
Return Loss21 dB
Impedance50 Ohms
Input Power400 Watts (Avg); 3000 Watts (Peak)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)
DC Pass Current3000mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

ConnectorsType-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
