931C-1344-1925

600/700MHz LTE / AWS-1, AWS-3 / 1900MHz PCS Triplexer / Combiner

600, 700 MHz LTE 555MHz - 798MHz

FEATURES

  • Splits or combines the 600MHz (B71), 700MHz LTE Band (555MHz-798MHz),
    AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and 1900MHz PCS Band (1850MHz-2000MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use

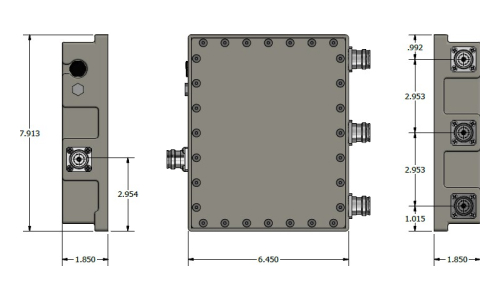

931c-1344-1925-1

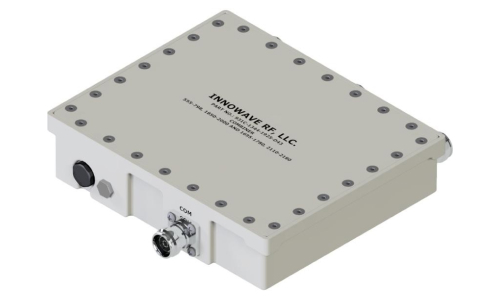

931c-1344-1925-2

Electrical Specification

Frequency Bands600, 700 MHz LTE
555MHz - 798MHz		AWS-1, AWS-3 Bands
1695MHz - 1780MHz
2110MHz – 2180MHz		1900 MHz PCS
1850MHz - 2000MHz
Passband Insertion Loss0.25 dB
Isolation≥ 40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power100 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

ConnectorsType-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
