931C-1444-3390

600, 700,850/PCS, AWS,WCS,BRS/CBRS,C-Band Triplexer / Combiner

617-896, 1695-2690, 3300-4200 MHz, -161dBc PIM, IP67

FEATURES

  • Splits or combines the 600, 700, 850 Bands (617MHz-896MHz), PCS, AWS-1, AWS-3, WCS, BRS Bands (1695MHz-2690MHz) and CBRS, C-Band (3300MHz-4200MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 Connectors standard. Other options available
  • Dual/Stacked (932C Model) also available
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

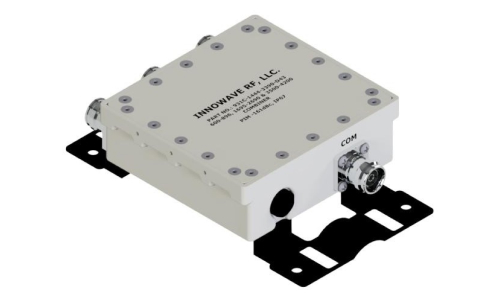

931c-1444-3390-1

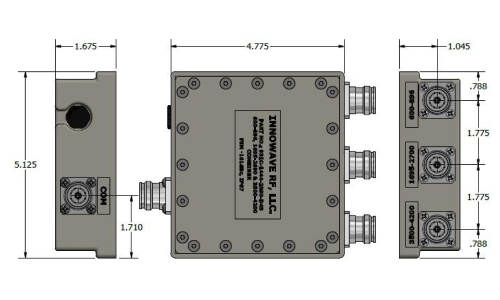

931c-1444-3390-2

Electrical Specification

Frequency Bands600, 700, 850
617MHz - 896MHz		PCS, AWS,WCS,BRS
1695MHz - 2690MHz		CBRS, C-Band
3300MHz - 4200MHz
Passband Insertion Loss0.25 dB (Typ)
Isolation≥ 40 dB
Return Loss21 dB (Typ)
Impedance50 Ohms
Input Power100 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3 rd)-161dBc (Min) (2 Tones +43 dBm)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors4.3-10 (D43) / DIN (D) / Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Weight2.00 lbs (Single)
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
