931C-800-2100

600(B71), 700+FN / 850 / PCS, AWS-1, AWS-3 Triplexer / Combiner

600, 700+FN 617MHz - 798MHz

FEATURES

  • Splits or combines the 600 (B71), 700+FN Bands (617MHz-798MHz), 850 Band (815MHz-896MHz) and PCS, AWS-1, AWS-3 Bands (1695MHz-2200MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 Connectors standard. Other options available
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

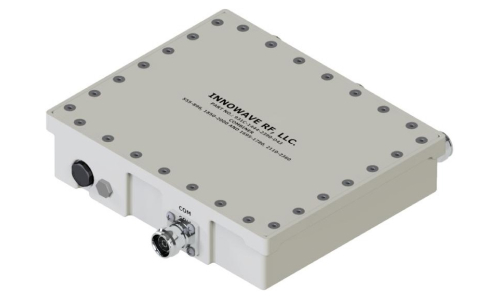

931c-800-2100-1

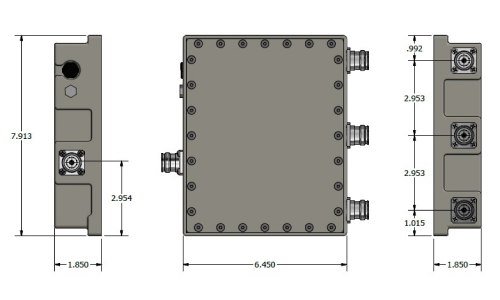

931c-800-2100-2

Electrical Specification

Frequency Bands600, 700+FN
617MHz - 798MHz		850
815MHz - 896MHz		PCS, AWS-1, AWS-3
1695MHz - 2200MHz
Passband Insertion Loss0.25 dB (Typ)
Isolation≥ 40 dB
Return Loss21 dB (Typ)
Impedance50 Ohms
Input Power100 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3rd)-161dBc (Min) (2 Tones +43 dBm)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors4.3-10 (D43) / DIN (D) / Mini-DIN (MD) / Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Weight2.00 lbs (Single)
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
