932C-1500-3390

600,700,850,PCS,AWS/WCS,BRS/CBRS,C-Band Triplexer / Combiner

617-2200/2300-2690/3300-4200, -161dBc, IP67

FEATURES

  • Splits or combines the 600 (B71), 700, 850, PCS, AWS-1&3 Bands (617MHz-2200MHz) and WCS,BRS Bands (2300MHz-2690MHz), CBRS, C-Band (3300MHz-4200MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or Nex10 Connectors
  • Available in Dual/Stacked (932C) Model
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

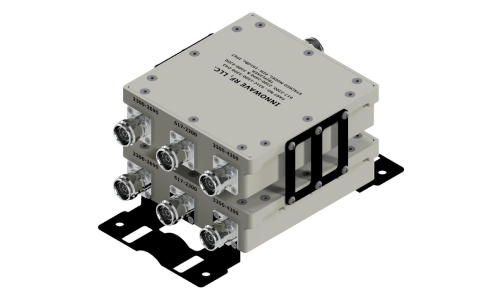

932C-1500-3390-1

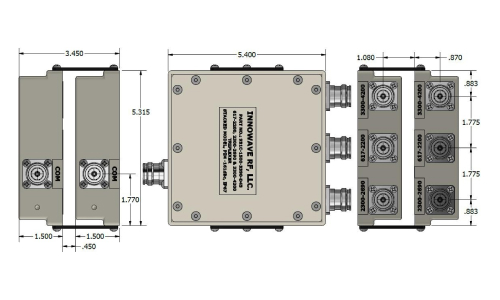

932C-1500-3390-2

Electrical Specification

Frequency Bands600, 700, 850, PCS, AWS-1&3
617MHz - 2200MHz		WCS, BRS
2300MHz - 2690MHz		CBRS, C-Band
3300MHz - 4200MHz
Passband Insertion Loss0.25 dB (Typ)
Isolation≥ 40 dB (Typ)
Return Loss21 dB (Typ)
Impedance50 Ohms
Input Power100 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3 rd)-161dBc (Min) (2 Tones +43 dBm)
DC Pass Current3000mA (Typ); 5000mA (Max)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors4.3-10 (D43) / Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Weight6.50 lbs
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
