932C-1800-3390

PCS / AWS-1, AWS-3 / CBRS, C-Band Triplexer / Combiner (DUAL MODEL)

1850-2000, 1695-1780 & 2110-2180, 3500-4000 MHz, -161dBc PIM, IP67

FEATURES

  • Splits or combines the PCS Bands (1850MHz-2000MHz), AWS-1, AWS-3 Bands
    (1695MHz-1780MHz & 2110MHz-2180MHz) and CBRS, C-Band (3500MHz-4000MHz)
  • Available in SINGLE (931C) & DUAL (932C) models
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use

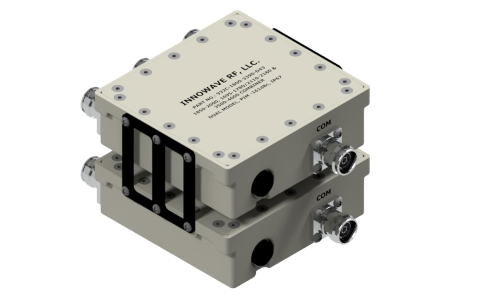

932C-1800-3390-1

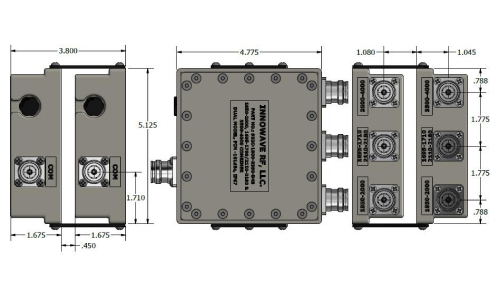

932C-1800-3390-2

Electrical Specification

Frequency BandsPort 1
(1900)
1850-2000 MHz		Port 2
(2100)
1695-1780 & 2110-2180 MHz		Port 3
(CBRS, C-Band)
3500-4000 MHz
Passband Insertion Loss0.30 dB
Isolation≥ 40dB @ 1695-1780 MHz
≥ 40dB @ 2110-2690 MHz		≥ 40dB @ 1850-2000 MHz
≥ 40dB @ 3500-4000 MHz		≥ 40dB @ 1695-2180 MHz
Return Loss20 dB
Impedance50 Ohms
Input Power250 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3 rd)-161dBc (2 Tones +43 dBm)
DC Pass Current3000mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
MTBF Hours≥ 500,000

Mechanical Specification

ConnectorsDIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10(X10)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Weight2.0 lbs (Single) / 4.0 lbs (Dual)
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
