952C-1200-3840

700+FN,850/PCS/AWS-1&3/WCS,BRS/CBRS,C-Band Pentaplexer / Combiner

698-896/1850-2000/1695-1780,2110-2200/2300-2690/3300-4200, -161dBc

FEATURES

  • Splits or combines 700+FN, 850 Bands (698MHz-896MHz), PCS Band (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2200MHz), WCS, BRS Bands (2300MHz2690MHz) and CBRS,C-Band (3300MHz-4200MHz)
  • Stacked / Dual unit for MIMO applications
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

952C-1200-3840-1

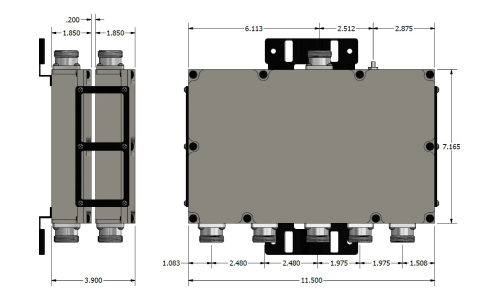

952C-1200-3840-2

Electrical Specification

Frequency Bands700+FN, 850
698 - 896 MHz		PCS
1850 - 2000 MHz		AWS-1, AWS-3
1695 - 1780 MHz
2110 - 2200 MHz		WCS, BRS
2300 - 2690 MHz		CBRS, C-Band
3300 - 4200 MHz
Passband Insertion Loss0.35 dB
Isolation≥ 40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing FinishAluminum Body
Mounting MethodMounting Panel
Weight13 lbs
Temperature Range-35°C to 75°C
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
