2-Way Power Splitter Array Module on a 2RU 19” Rack Tray
600-6000MHz, -163dBc PIM, 2RU High, QMA Connectors

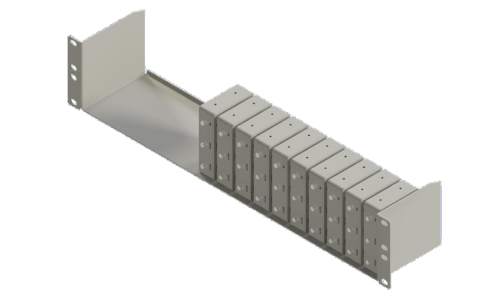

ASSM-112R Series is an array of 2-Way Power Splitters mounted on a 2RU Sub-Rack Tray (PN: R112B- 2RU). Up to 16x of the Reactive Splitters (Model #: 112R-600-6000-QMA) can be mounted on a rack tray. Each of these splitters has an independent RF path. The Splitters have both Input and Output connectors on the same side which makes connection on a Rack Frame or H-Frame simple and straightforward. They cover all the traditional Cellular frequencies, including the CBRS, C-Bands and LTE-LAA. When mounted on a DAS Tray, they can be used to split signals coming out of Attenuator Modules into different zones in In-Building Systems. It also has a very low Insertion Loss with an outstanding VSWR at all three ports.
FEATURES
Each Assembly includes the following:

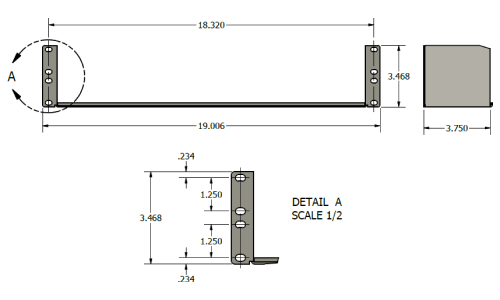

- 2RU Sub-Rack (PN: R112B-2RU) – Holds up to 16x 2-Way Splitter Modules

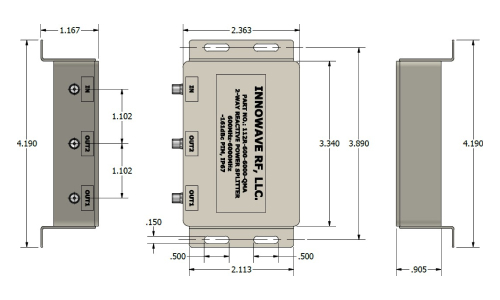

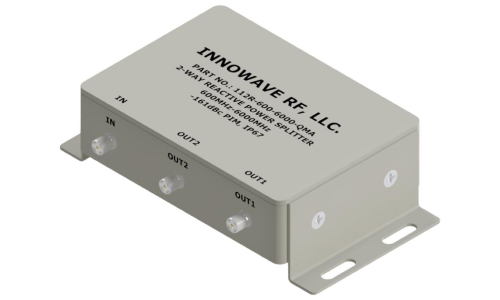

- 2-Way Power Splitter with QMA Connectors (PN: 112R-600-6000-QMA)

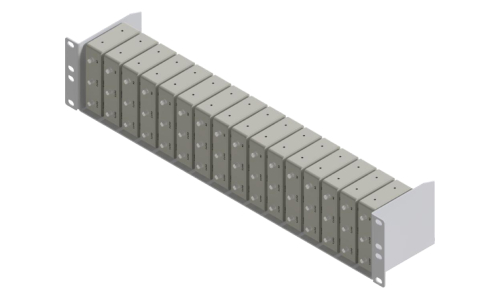

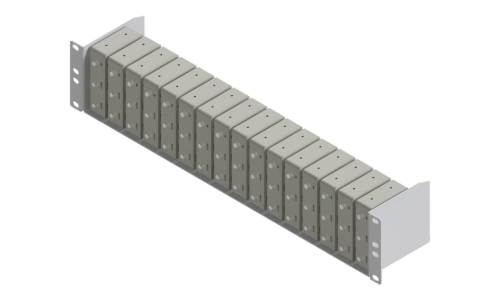

- Up to 16x 2-Way Splitter Modules on 2RU tray
- Each Splitter has independent RF Path
- Input & Output Connectors along the same side
- INPUT – QMA (F) OUTPUT – QMA (F)
- CBRS / C-Band / LTE-LAA Ready
- Low PIM , -163dBc
- In Stock to low lead time delivery
Specifications
2-Way Splitter Module | 16 (max) |
Rack Space Needed | 2 RU |
Temperature Range | -30°C to 70°C |
Weight | 3.00 lbs |
Dimensions | 3.47”(H) x 19.00”(W) x 3.75”(D) |
Frequency Range | 600 MHz – 6000 MHz |
Passband Insertion Loss | 0.20dB (Over the theoretical loss 3dB) |
VSWR | ≤ 1.30 @ 600-960 MHz ≤ 1.25 @ 960-4200 MHz ≤ 1.30 @ 4200-6000 MHz |
Power Handling | 200 W (Avg) |
Intermodulation (PIM - 3rd) | -163 dBc (Typ) (2 Tones +43 dBm) |
Impedance | 50 Ohms |
Temperature Range | -30°C to 70°C |
Connector | IN - QMA(F) / OUT – QMA(F) |
Weight | 0.75 lbs |
Dimensions (in) | 3.34”(H) x 0.91”(W) x 2.36”(D) |
© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
