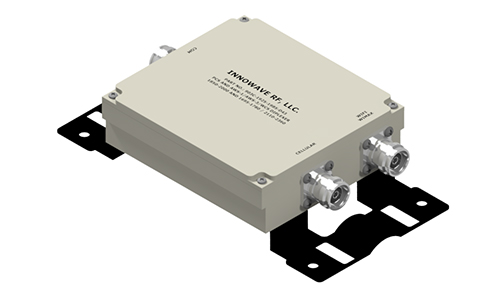

901-1500-4900 / 901X-1500-4900Cellular & Wi-Fi / WiMAX Combinar / Diplexer
600-2200 & 2400-2500,4900-5850 MHZ, -161 dBc PIM, IP67(901) or IP64(901X)
FEATURES
- Splits or combines all the Cellular Bands (600MHz-2200MHz) and Wi-Fi/WiMAX Bands (2400MHz-2500MHz & 4900MHz-5850MHz)
- Port 2 combines both 2.4GHz Wi-Fi and 5.8GHz Wi-Fi
- Best in Class Isolation between the 2 signals
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
- Low PIM and High Power Handling
- RoHS Complaint
- DC By-pass available on outdoor units
- Ease of Mounting with mounting holes
- Weatherproof / Outdoor options available
- In Stock and Available Immediately
Electrical Specification
| Frequency Bands | Cellular Bands 600 MHz-2200 MHz | WLAN/WiMAX/2.4GHz & 5.8GHz Wi-Fi 2400MHz-2700MHz 4900MHz-5850MHz |
| Passband Insertion Loss | 0.20 dB | |
| Isolation | ≥60 dB @ 2400MHz-2700MHz 4900MHz-5850MHz | ≥60 dB @ 600MHz-2200MHz |
| Return Loss | 21 dB | |
| Impedance | 50 Ohms | |
| DC Pass Current | 4000mA (Typ) (Outdoor units only) | |
| Lightning Protection | 8/20S 10kA Pulse (IEC 801-5) (Outdoor units only) | |
| Input Power | 400 Watts (Avg); 2500 Watts (Peak) | |
| Intermodulation (PIM - 3rd) | -161 dBc (2 Tones +43 dBm) | |
Mechanical Specification
| Connectors: | 4.3-10 (D43) (Standard) Other Options – DIN (D), Nex10 (X10) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Panel |
| Temperature Range: | -35°C to 75°C |
| Weight: | 4 lbs |
| Relative Humidity: | 5% - 95% |
| Environment: | IP67 (901) & IP64 (901X) |
*** ORDERING INFO:
Indoor Model: Part#: 901X-1500-4900-*
Outdoor Model: Part#: 901-1500-4900-*
* - Connector Option

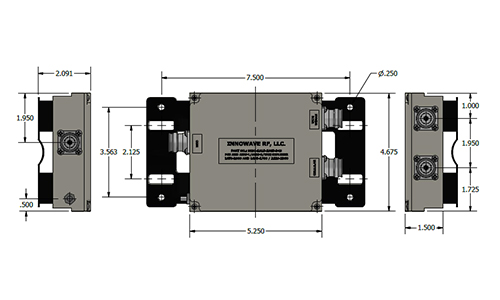

BLOCK DIAGRAM FOR 901-1500-4900
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
