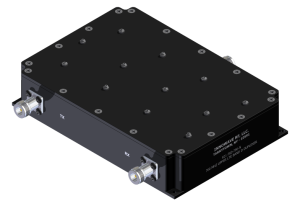

Upper LTE Band D – 700 MHz Duplexer

PART #:

921-760-790
FEATURES

  • Splits or combines TX and RX in Lower LTE Band D signals in the 700MHz band.
  • Best-in-class Isolation between the 2 signals.
  • Very low Insertion Loss with superior out of band rejections.
  • Low-PIM with High Power Handling.
  • ROHS Complaint.
  • Ease of Mounting with mounting holes.
  • Available in 7/16 DIN and Type-N Connectors.
  • Weatherproof / Outdoor options available.
  • In Stock and Available Immediately.

Electrical Specification

Frequency BandsTransmit 788MHz-793MHzReceive 758MHz-763MHz
Insertion Loss0.35 dB (Typ)0.35 dB (Typ)
Pass Band Ripple0.15 dB (Typ)0.15 dB (Typ)
Isolation≥80 dB @ 758MHz-763MHz≥80 dB @ 788MHz-793MHz
Return Loss22 dB (Typ)22 dB (Typ)
Impedance50 Ohms50 Ohms
Input Power250 Watts (Avg)250 Watts (Avg)
Intermodulation (PIM - 3rd) ***-150dBc (Typ) / -157dBc (Typ) (2 Tones +43 dBm) -150dBc (Typ) / -157dBc (Typ) (2 Tones +43 dBm)

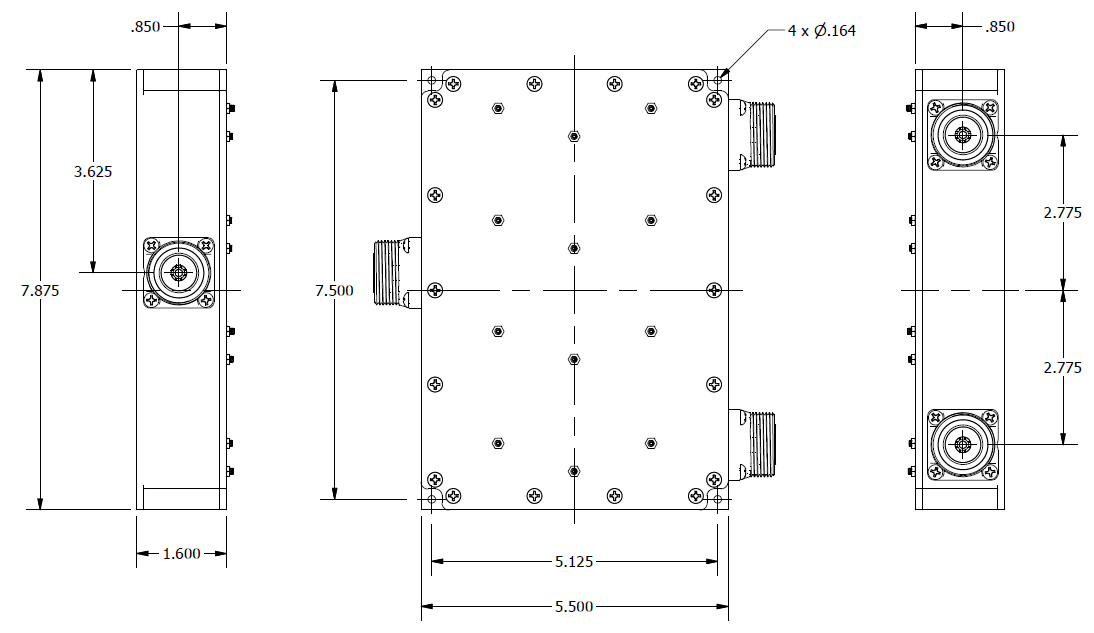

Mechanical Specification

Connectors: Type-N (Female) and 7/16 DIN (Female) Options Available
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Temperature Range:-30°C to 80°C
Humidity: 5% – 95%
Environment:IP64

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
